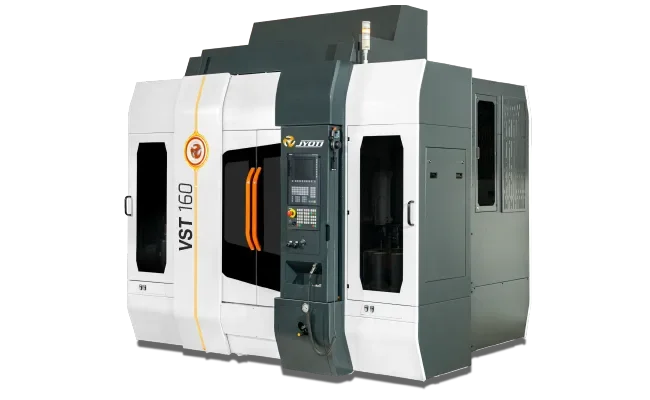

VST 160 Vertical Shaft Turning Machine

The Jyoti VST 160 Vertical Shaft Turning Machine represents cutting-edge 4-axis CNC technology specifically engineered for the emerging electric vehicle (EV) and power transmission industries. This specialized vertical turning center delivers exceptional precision and productivity for shaft-type components, making it ideal for UAE manufacturers entering the rapidly growing EV component supply chain.

Purpose-Built for EV & Power Transmission: The VST 160 addresses the specialized machining requirements of modern electric vehicle motor shafts, gearbox components, and precision power transmission parts. The vertical shaft orientation combined with automated part handling makes it perfect for high-volume production environments where consistency and cycle time are critical.

Advanced Twin Turret System:

• 9+9 Station Configuration: 18 total tool positions for complex multi-operation machining
• BMT 55 Tool Holders: Industry-standard static tool interface for maximum rigidity
• Simultaneous Operations: Both turrets can work together for reduced cycle times
• Quick Tool Change: Minimized non-productive time between operations

Integrated Automation System:

• 24-Pallet Job Feeder: 12 input + 12 output pallets for extended unmanned operation
• Automatic Part Loading: Consistent positioning for repeatable accuracy
• Digital Tailstock: Programmable support for long shaft components
• Tool Life Management: Automatic tool monitoring and replacement scheduling

4-Axis Precision Machining:

• C-Axis Capability: 0.001° resolution for precise angular positioning
• Linear Glass Scale: Direct position feedback for enhanced accuracy
• High-Speed Spindle: 5000 rpm with 22 kW power for demanding materials
• Rapid Traverse: 20 m/min on all axes for minimized cycle times

Technical Highlights:

• 625mm maximum turning length for extended shaft components
• 200mm maximum job diameter with 125mm standard turning diameter
• 240mm X-axis and 625mm Z-axis travel
• A2-6 spindle nose for standard chuck compatibility
• 8.5 kg maximum job weight capacity
• Positioning uncertainty of 0.01mm and repeatability of 0.005mm

Control System Options: The VST 160 is available with industry-leading CNC controllers:

• Siemens SINUMERIK 828D for advanced functionality
• FANUC 0i-TF Plus for proven reliability

Buy Jyoti VST 160 Vertical Shaft Turning Machine in Dubai, UAE - Contact Indepco CNC for competitive pricing, full specifications, and expert consultation on this specialized EV component manufacturing solution. Official Jyoti CNC distributor across the United Arab Emirates.
