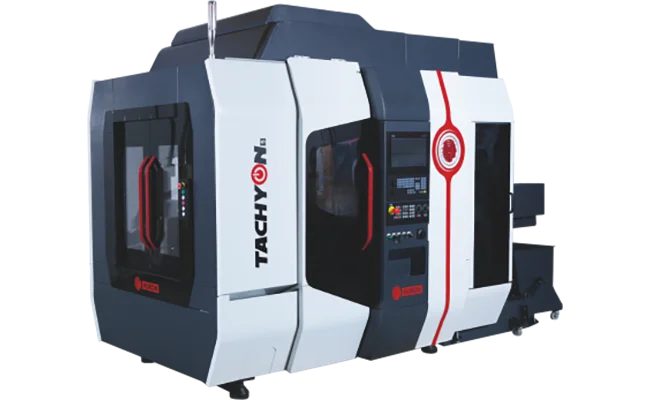

Tachyon Five (5-Axis)

The Tachyon Five transforms high-speed drilling capability into a complete 5-axis machining centre by replacing the fixed table with a 2-axis rotary table. This roto-tilting dividing device enables production of complex small parts with 3 to 5 simultaneous axes, making it ideal for general mechanics, watchmaking, medical, and precision engineering applications.

Key Features

• Compact 5-axis machining centre with roto-tilting dividing device
• Fixed bed structure with high dynamics and accurate machining
• A-axis (tilting): ±110° at 150 rpm
• C-axis (rotating): 360° at 250 rpm
• High-speed spindle with BBT 30 taper, 24,000 rpm
• Ultra-fast rapid feedrates: 60 m/min on all linear axes
• Excellent positioning accuracy: 0.006 mm
• Perfect for complex small parts production (Ø 200mm x 170mm height)
