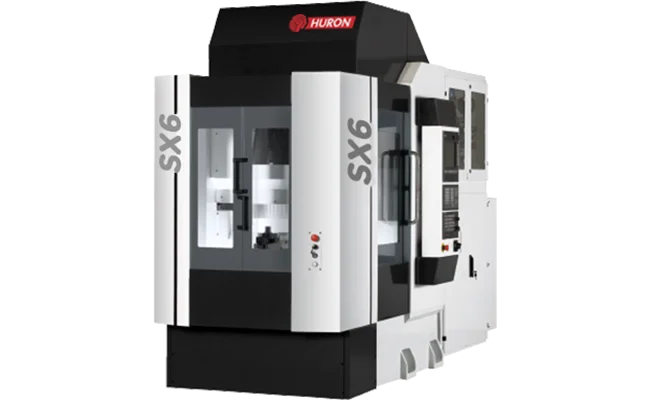

SX 6

The SX 6 is the larger capacity variant in the SX series, totally dedicated to fast milling for small and medium mass production. With its increased work envelope and higher load capacity, it's suitable for larger components while maintaining the same high-speed machining capabilities and minimal loading/unloading time. The fixed base and column travelling design ensures unmatched performance.

Key Features

• Fixed base & column traveling type (all axes on tool, no table movement)
• Extended capacity: 500mm X-axis, 400mm Y-axis, 400mm Z-axis
• High rigidity at high dynamics with precision class roller-type linear motor guides
• High-speed electrospindle: 12,000 rpm with HSK A50 taper
• Spindle acceleration rate of 1.1 sec for high precision and dynamism
• Integral automatic pallet changer with 2 pallets (650 x 400mm, 300kg each)
• 16-tool ATC with quick tool change time
• Swivelling control panel for operator friendliness
• Feasibility for auto interfacing as in-line machine
• Rear-type chip conveyor and graphite dust extraction system
