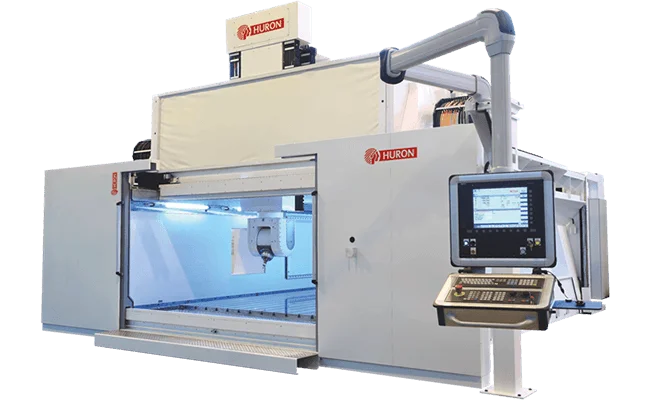

KXG 90-23

The KXG 90-23 is the flagship model in the gantry milling series, designed for machining the largest and most complex parts. With an extraordinary X-axis of 9,000mm and substantial Y-axis of 2,300mm, this model excels at processing extremely long and wide workpieces up to 52,000kg. The robust gantry structure with reinforced, U-type moving crossrail ensures continuous 5-axis machining with very high feed speeds and exceptional rigidity for high metal removal rates on massive components.

Key Features

• Design suited to continuous 5-axis machining of ultra-large parts
• Extraordinary capacity with 9,000mm X-axis and 2,300mm Y-axis
• Massive load capacity up to 52,000kg on table
• Machining with very high feed speeds
• High rigidity enabling very high metal removal rates
• Gantry structure with reinforced, U-type moving crossrail
• Optimization of the moving axes by finite element structural calculation
• Dedicated foundation for improved dynamics
• Retractable roof for easy access to the work area and workpiece
• Tool magazine outside of the work area
• Tilting, inclined operator panel
• Energy efficiency for the production of large-sized parts
