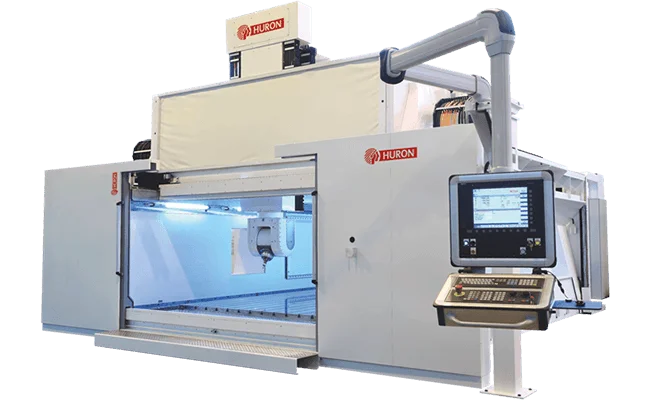

KXG 60-23

The KXG 60-23 is the largest model in the gantry milling series, particularly effective in machining very large, complex parts. With a maximum X-axis of 6,000mm and substantial Y-axis of 2,300mm, this model excels at processing extremely long and wide workpieces up to 25,000kg. The robust gantry structure with reinforced, U-type moving crossrail ensures continuous 5-axis machining with very high feed speeds and exceptional rigidity for high metal removal rates.

Key Features

• Design suited to continuous 5-axis machining of extremely large parts
• Maximum capacity with 6,000mm X-axis and 2,300mm Y-axis
• Ultra-high load capacity up to 25,000kg on table
• Machining with very high feed speeds
• High rigidity enabling very high metal removal rates
• Gantry structure with reinforced, U-type moving crossrail
• Optimization of the moving axes by finite element structural calculation
• Dedicated foundation for improved dynamics
• Retractable roof for easy access to the work area and workpiece
• Tool magazine outside of the work area
• Tilting, inclined operator panel
• Energy efficiency for the production of large-sized parts
