KX Five nvu Series 5-Axis Bridge Type Machining Center

The Jyoti KX Five nvu Series represents cutting-edge HSM (High Speed Machining) technology in a 5-axis simultaneous machining platform. Featuring a fixed portal design that combines exceptional dynamics with precision, this series excels from roughing to finishing of complex, high-precision components.

Fixed Portal Architecture: The KX Five nvu Series is built on a rigid fixed portal structure in ribbed cast iron with stiffened walls, providing exceptional harmonic stability essential for complex part machining at high speeds.

TRIM Technology Rotary Table:

• Inclined Table Plane: 55° (K3X8) / 45° (K2X10) for optimal chip evacuation and accessibility
• Extended A-Axis Range: +30°/-180° (K3X8) or +45°/-180° (K2X10)
• Negative Angle Capability: -20° inclined position enables 6th side machining
• High-Speed C-Axis: 360° continuous rotation at 50 rpm
• Table Diameters: Ø500mm (K3X8) / Ø630mm (K2X10)
• Load Capacity: Up to 500 kg (K2X10)

High-Speed Electrospindle:

• 18,000 RPM HSK 63A Spindle: Optimized for HSM operations
• 26.7 kW Power: High metal removal capability
• 110/84 Nm Torque: (S6-40% / S1) balanced power delivery
• Characteristic Speed: 3400 rpm for optimal torque/speed balance

Ultra-High Precision: Built to demanding VDI/DGQ 3441 standards with optical encoders:

• Linear axes (X-Y-Z): 4µm positioning uncertainty, 2µm repeatability
• Rotating axes (A-C): 7.2 arc-sec accuracy, 3.6 arc-sec repeatability
• Incremental measurement by optical encoders

Dynamic Performance:

• 50 m/min Rapid Traverse: Fast positioning on all linear axes
• 5 m/s² Acceleration: Responsive axis motion for complex contours
• High A-Axis Speed: Up to 50 rpm for efficient tilting

36-Tool Magazine:

• 36 Pocket Capacity: Extensive tooling for complex parts
• 90mm Max Tool Diameter: Standard tool compatibility
• Max Tool Length: Up to 300mm (K2X10)
• 10 kg Max Tool Weight: Heavy tool capability

Application Focus: Specially designed for:

• Injection molds with complex cooling channels
• Complex defense components
• Aerospace structural parts
• High-integrity mechanical components
• Multi-pallet production (up to 6 pallets option)

Model Range:

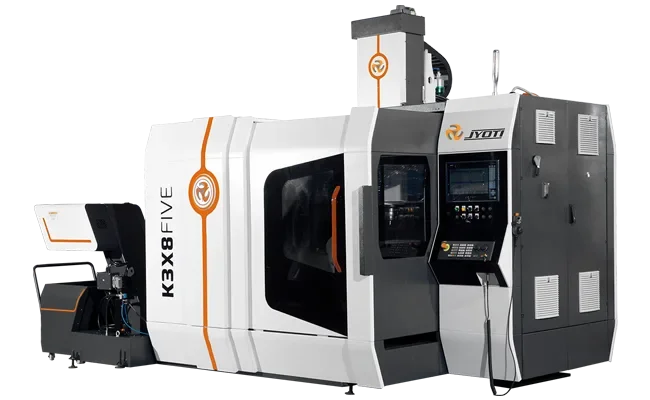

• K3X8 Five nvu: 780x700x500mm travels, Ø500 table, 55° plane, 10,000kg
• K2X10 Five: 900x900x500mm travels, Ø630 table, 45° plane, 14,500kg

Buy Jyoti KX Five nvu Series in Dubai, UAE - Contact Indepco CNC for competitive pricing, full specifications, and expert consultation on this high-speed 5-axis machining solution. Official Jyoti CNC distributor across the United Arab Emirates.
