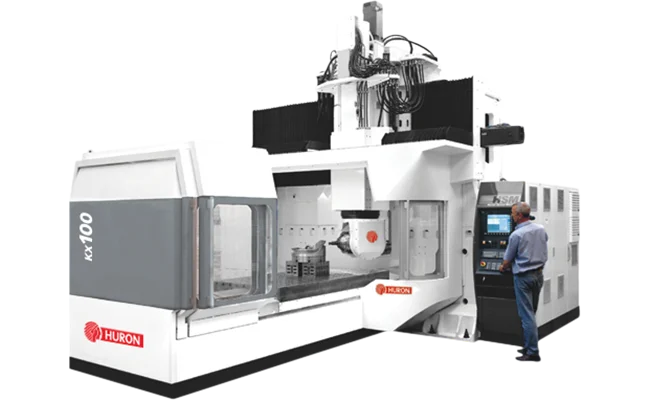

KX 100

The KX Large Series offers a wide selection of machines for continuous five-axis/five-side machining of complex parts. The KX 100 features fixed-portal architecture with massive 2,300 x 2,300mm square work envelope and double column design ensuring maximum rigidity for extremely precise machining in a variety of difficult materials. Its large work area, capable of supporting up to 12,000kg in weight and accommodating processable volumes up to 2,500 x 2,300mm, is suited to machining extremely large heavy parts for general mechanical and precision engineering, 3D shapes, and the aeronautical and energy sectors.

Key Features

• 5-axis machining with forked head
• Massive 12,000kg table capacity for extremely heavy parts
• Square work envelope 2,300 x 2,300mm for large workpieces
• Fixed-portal double column architecture for maximum rigidity
• High torque rotating axes (7,000 Nm) for heavy-duty operations
• Wide clearance between columns to exploit work volume fully
• Volumetric precision for making moulds and complex parts
• Spindle offering optimum performance for roughing and finishing
• High degree of precision due to direct measurement on linear and rotary axes
• Structural design guaranteeing long mechanical life
• Machine with palletizing function for increased productivity
