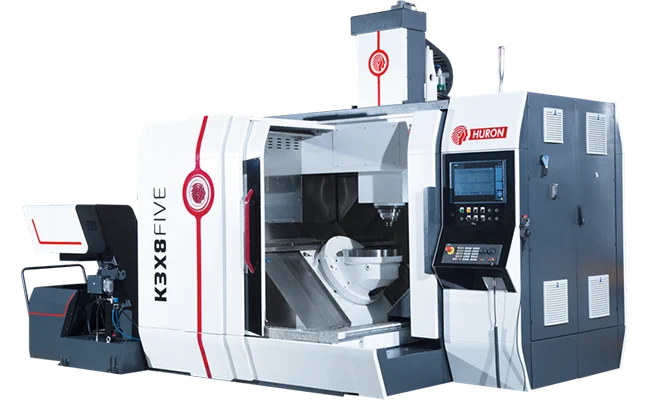

K3X 8 Five

The KX Five series is a combination of dynamics and precision for continuous five-axis machining of complex parts. Through the excellent standard of machining vibration damping, high-quality surface finishes and optimum precision can be achieved on a variety of materials. The K3X 8 Five features a unique rotating table on a 55° plane with A-axis tilting and C-axis rotation, providing exceptional accessibility for machining complex geometries. Its compact work envelope of 780 x 700 x 500mm and 300kg table capacity make it ideal for precision components in aerospace, medical devices, and high-precision engineering applications.

Key Features

• 5-axis machining with A-axis tilting and C-axis rotation
• Rotating table on 55° plane for optimal workpiece accessibility
• Large-sized monoblock bed and reinforced portal for rigidity
• Cast iron construction with high mechanical properties
• Compact 780 x 700 x 500mm work envelope for precision parts
• Continuously controlled two-axis table (A, C)
• Permanent visibility over workpiece during machining
• Guiding system providing high stability during movement
• Floor anchor points guaranteeing optimum speeds and acceleration
• Compact machine footprint for efficient shop floor utilization
• High-speed 18,000 rpm spindle with HSK 63-A taper
• 36-tool automatic changer for flexible operations
