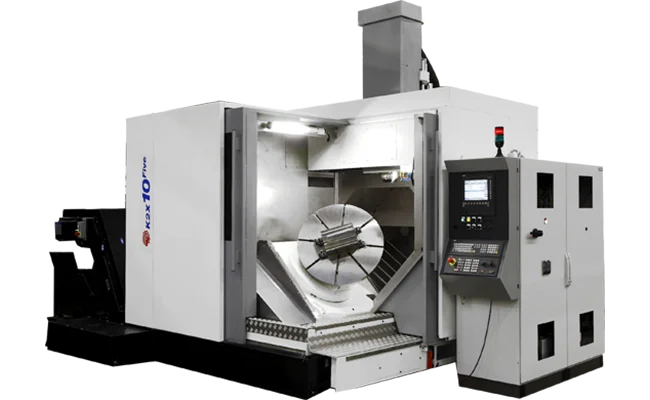

K2X 10 Five

The KX Five series is a combination of dynamics and precision for continuous five-axis machining of complex parts. Through the excellent standard of machining vibration damping, high-quality surface finishes and optimum precision can be achieved on a variety of materials. The K2X 10 Five features a unique rotating table on a 45° plane with enhanced A-axis tilting (+45° / -180°) and C-axis rotation, providing exceptional accessibility for machining complex geometries. Its versatile work envelope of 900 x 900 x 500mm and 750kg table capacity make it ideal for medium-sized precision components in aerospace, energy sector, and high-precision engineering applications.

Key Features

• 5-axis machining with A-axis tilting and C-axis rotation
• Rotating table on 45° plane for optimal workpiece accessibility
• Enhanced A-axis positive range +45° for increased flexibility
• Large-sized monoblock bed and reinforced portal for rigidity
• Cast iron construction with high mechanical properties
• Versatile 900 x 900 x 500mm work envelope with square XY axes
• Continuously controlled two-axis table (A, C)
• Permanent visibility over workpiece during machining
• Medium capacity 750kg table load for heavier precision parts
• Larger Ø 630mm rotating table for expanded workpiece size
• Guiding system providing high stability during movement
• Floor anchor points guaranteeing optimum speeds and acceleration
• High-speed 18,000 rpm spindle with HSK 63-A taper
• 36-tool automatic changer for flexible operations
