EX Series 5-Axis Moving Column Machining Center

The Jyoti EX Series 5-Axis Moving Column Machining Centers deliver exceptional performance and versatility for manufacturing complex shapes from small intricate parts to large heavy components for aviation and allied sectors. These modular, rigid, and thermally stable machines are designed for demanding roughing to finishing operations in the UAE and Middle East markets.

Moving Column Architecture: The innovative moving column design keeps the workpiece stationary on a fixed table, enabling:

• Exceptional Load Capacity: Up to 4500kg table load for heavy components
• Superior Accessibility: Very large top accessibility for easy setup
• Rigid Structure: Modular construction for maximum stability
• Thermal Stability: Consistent accuracy across extended machining cycles

5-Axis Head Options:

• P-Type Head: Continuous servo head with ±100° B-axis for full simultaneous 5-axis machining
• N-Type Head: 2-position indexing head for 3+2 axis positioning operations
• Rotary Table Options: A-axis or C-axis configurations available

High-Performance Spindle:

• 8000rpm Maximum Speed: Versatile for various materials
• BT 40 Spindle Taper: Standard tooling compatibility
• Dual Controller Options: Siemens 828D (16.5/11 kW) or Fanuc 0i MF (15/11 kW)
• 70mm Front Bearing Bore: Excellent rigidity and precision

Flexible Size Range: Three machine sizes to match application requirements:

• EX-1280: 1200mm X-travel, 1600×800mm table, 2500kg capacity

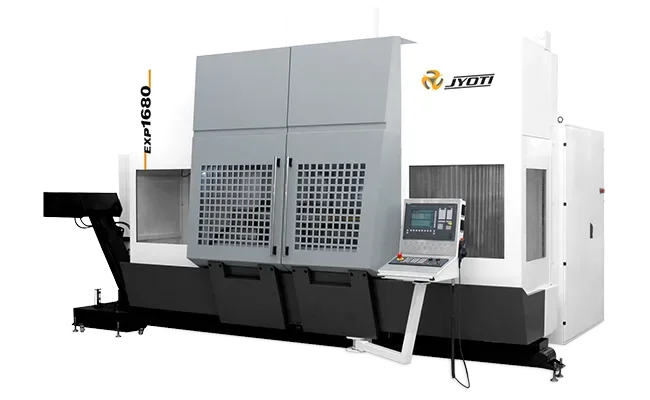

• EX-1680: 1600mm X-travel, 2000×800mm table, 3500kg capacity
• EX-2480: 2400mm X-travel, 2800×800mm table, 4500kg capacity

High-Speed Machining:

• 30 m/min Rapid Traverse: Fast positioning across all axes
• 10 m/min Cutting Feed: Productive material removal rates
• 800mm Y and Z Travels: Generous working envelope
• Wide Roller LM Guideways: Smooth, accurate motion

Automatic Tool Changer:

• 20-Tool Magazine: Extended unmanned machining
• External Placement: ATC outside working area for chip protection
• Tool Capacity: 80mm diameter (125mm with adjacent pockets empty)
• 7kg Maximum Tool Weight: Handles substantial tooling
• 250mm Maximum Tool Length: Accommodates extended reach tools

Precision Standards (VDI/DGQ 3441):

• Positioning uncertainty: 0.020mm
• Repeatability: 0.008mm
• Laser-calibrated axis systems

Industry Applications:

• Aerospace structural components and housings
• Large mold and die manufacturing
• Blade machining for turbines
• Heavy geared shafts and large gears
• Intricate profile machining
• Defence sector components
